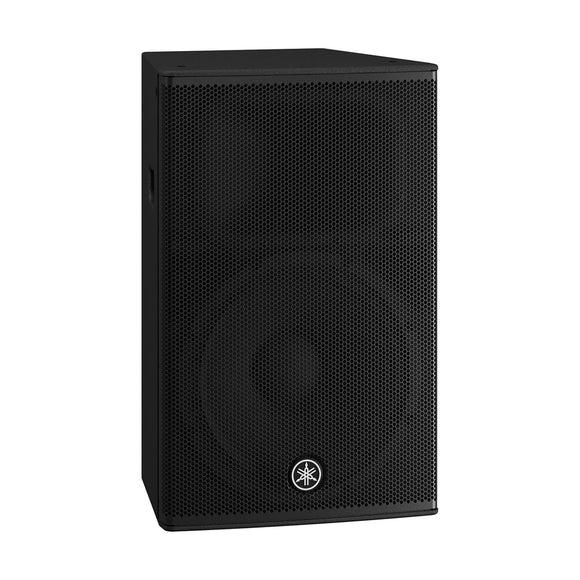

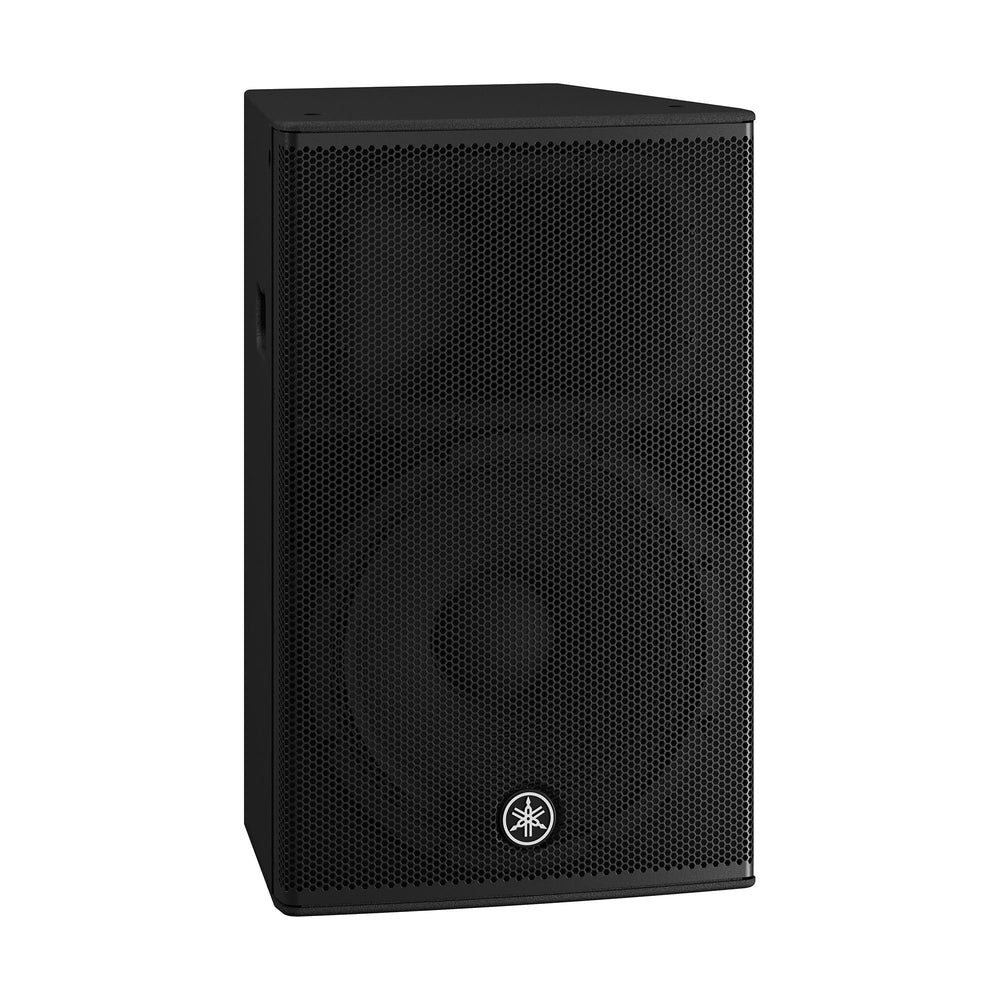

Yamaha DHR15 Powered Speaker
Yamaha DHR15 Powered Speaker
Yamaha DHR15 Powered Speaker

Yamaha DHR15 Powered Speaker

Yamaha

  • Save $250
Tax included.

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

The DHR Series features a comprehensive lineup of powered loudspeakers with cabinets optimized to meet the demands of specific applications. DHR10 and DHR12 are equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility, while DHR12M and DHR15M feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by DHR15, which features rigging points for use in fixed installations. DHR12 and DHR15 also feature dual-angle pole sockets, allowing them to be used as temporary main speakers for sound reinforcement.

Features

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Specifications

  • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 44 Hz - 20 kHz
  • Coverage area: H90ﾟ x V60ﾟ
  • Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
  • Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL

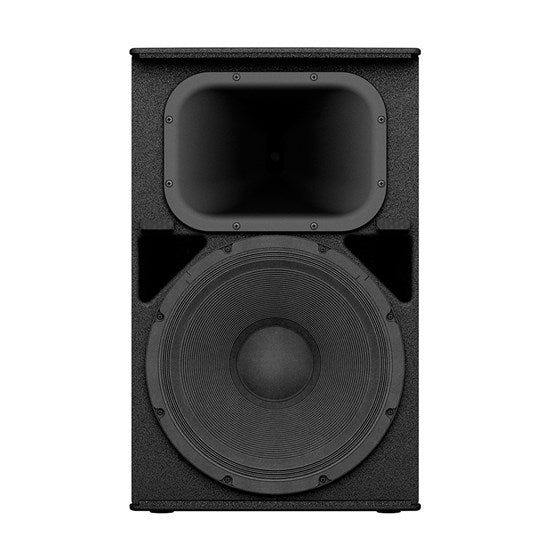

  • Components LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
  • Components HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
  • Amplifier class: Class-D
  • Power rating Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
  • Power rating Continuous: 465 W (LF: 400 W, HF: 65 W)
  • Cooling: Fan cooling, 4 speeds
  • Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

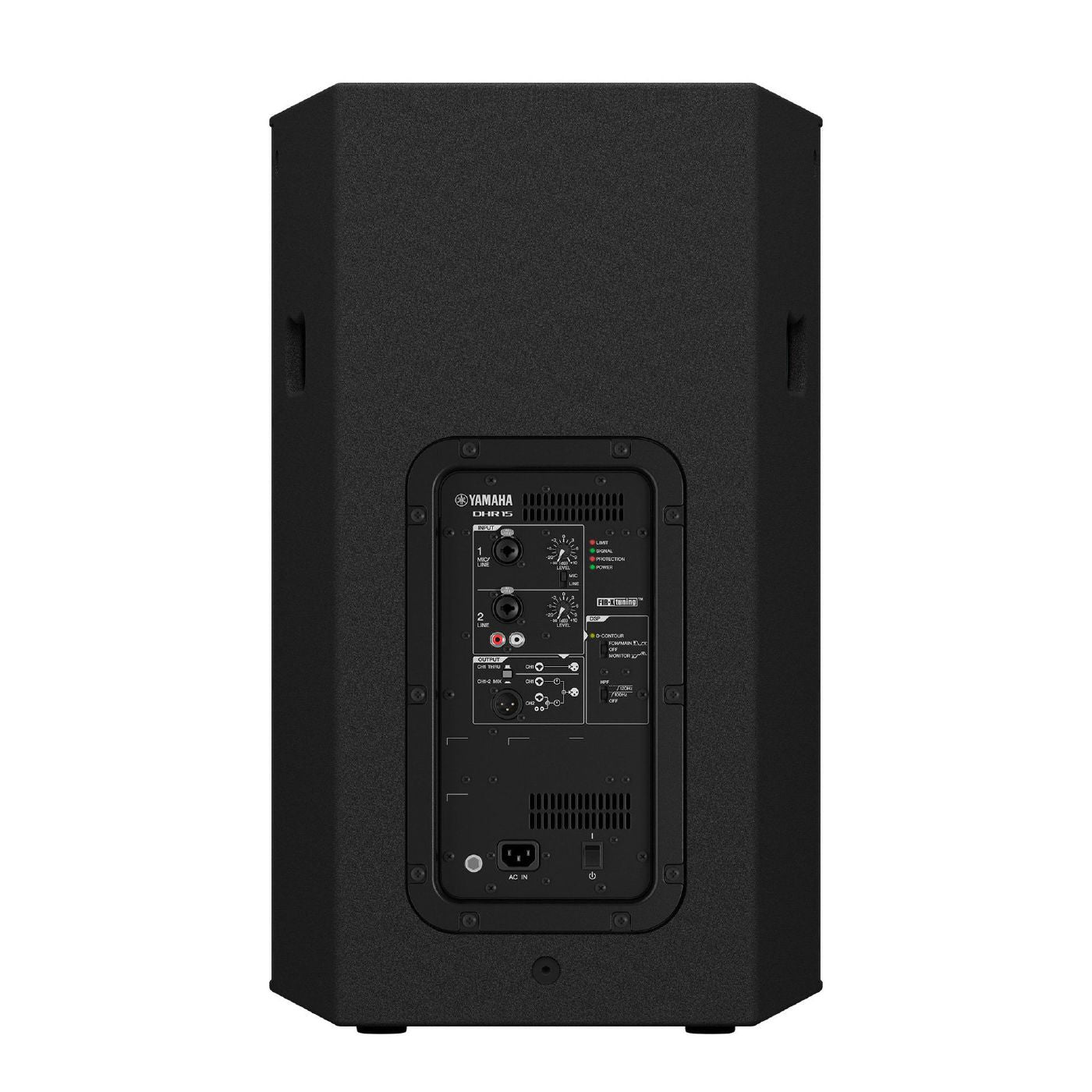

  • I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Dimensions (WxHxD): 432 mm, 692 mm, 405 mm
  • Net weight: 24.0 kg
