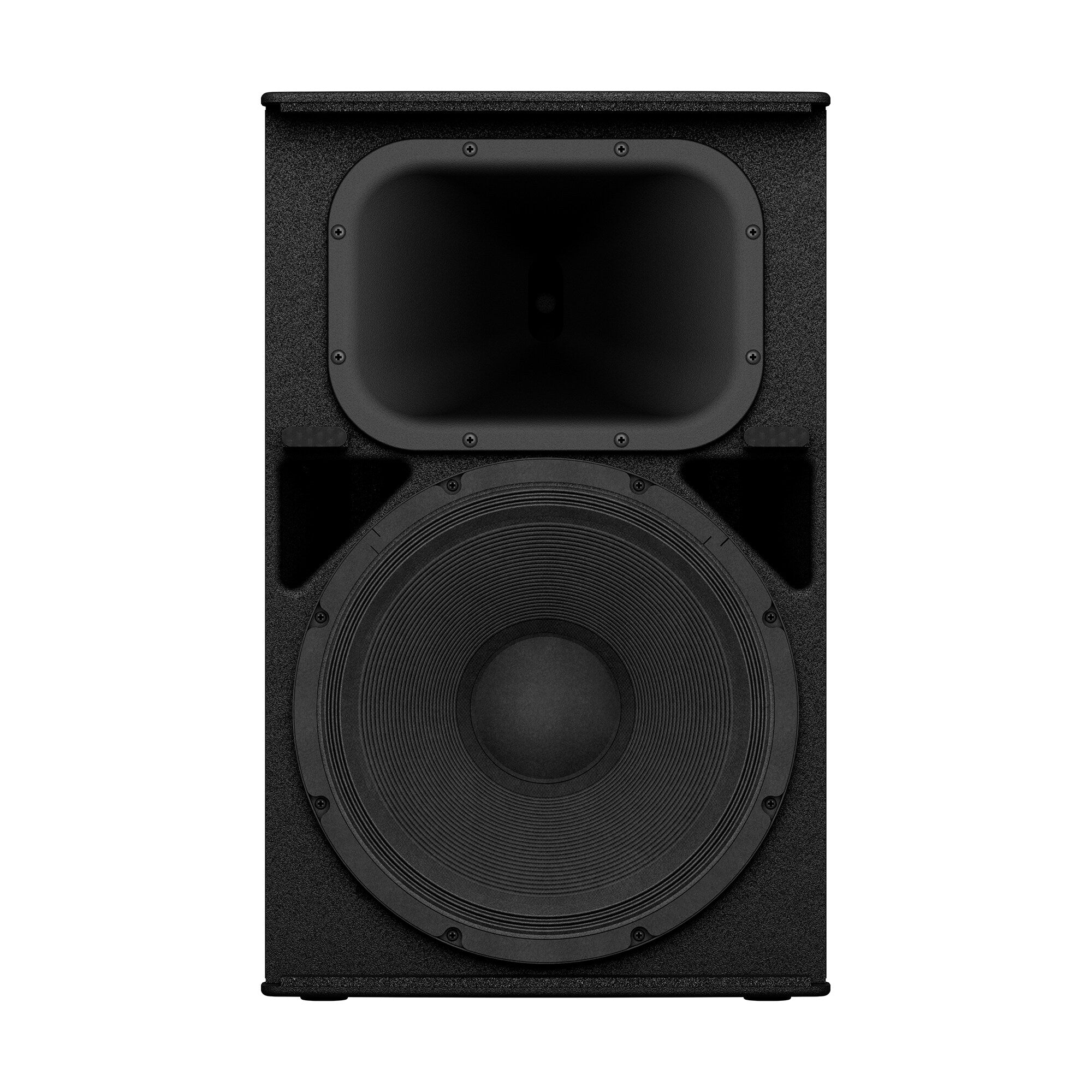

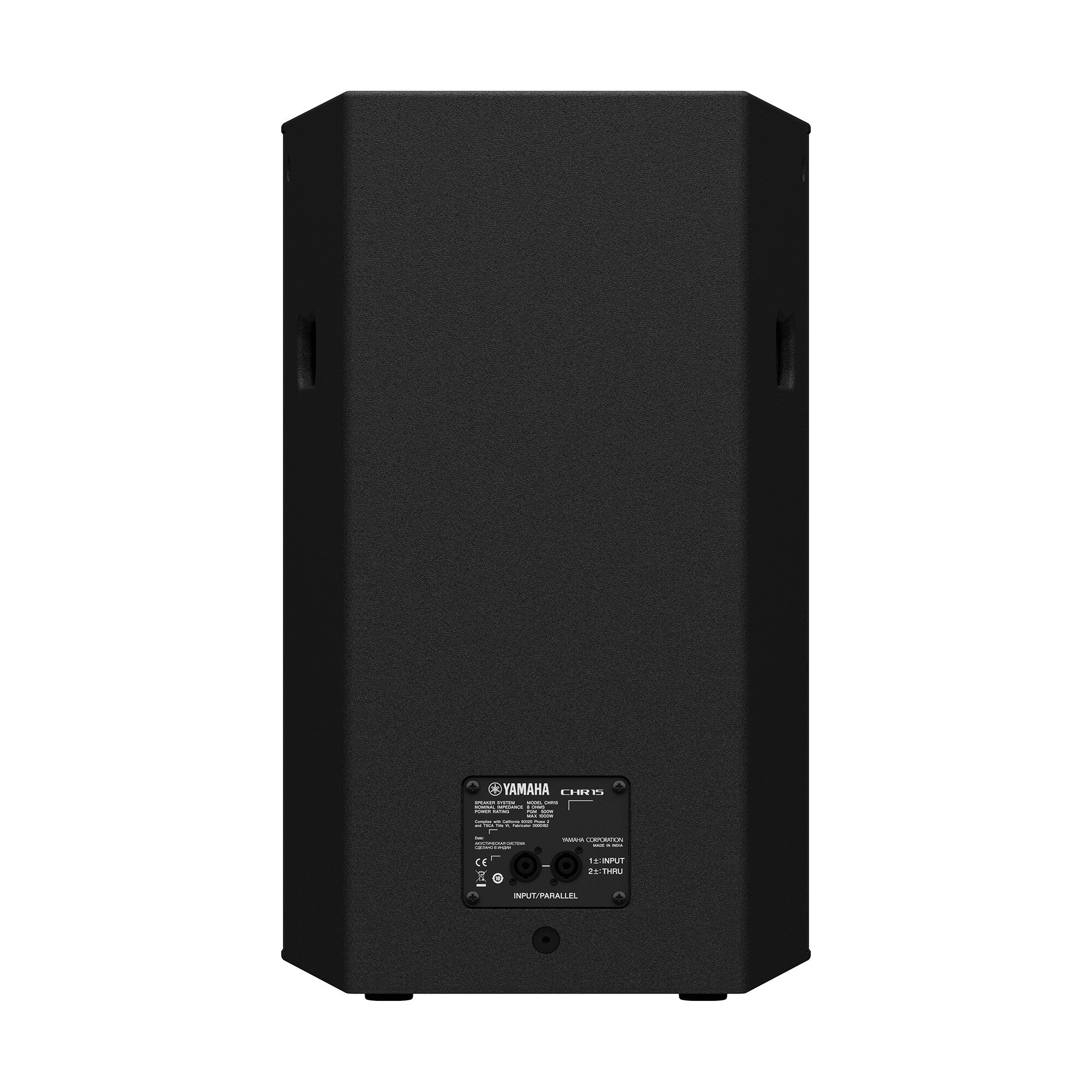

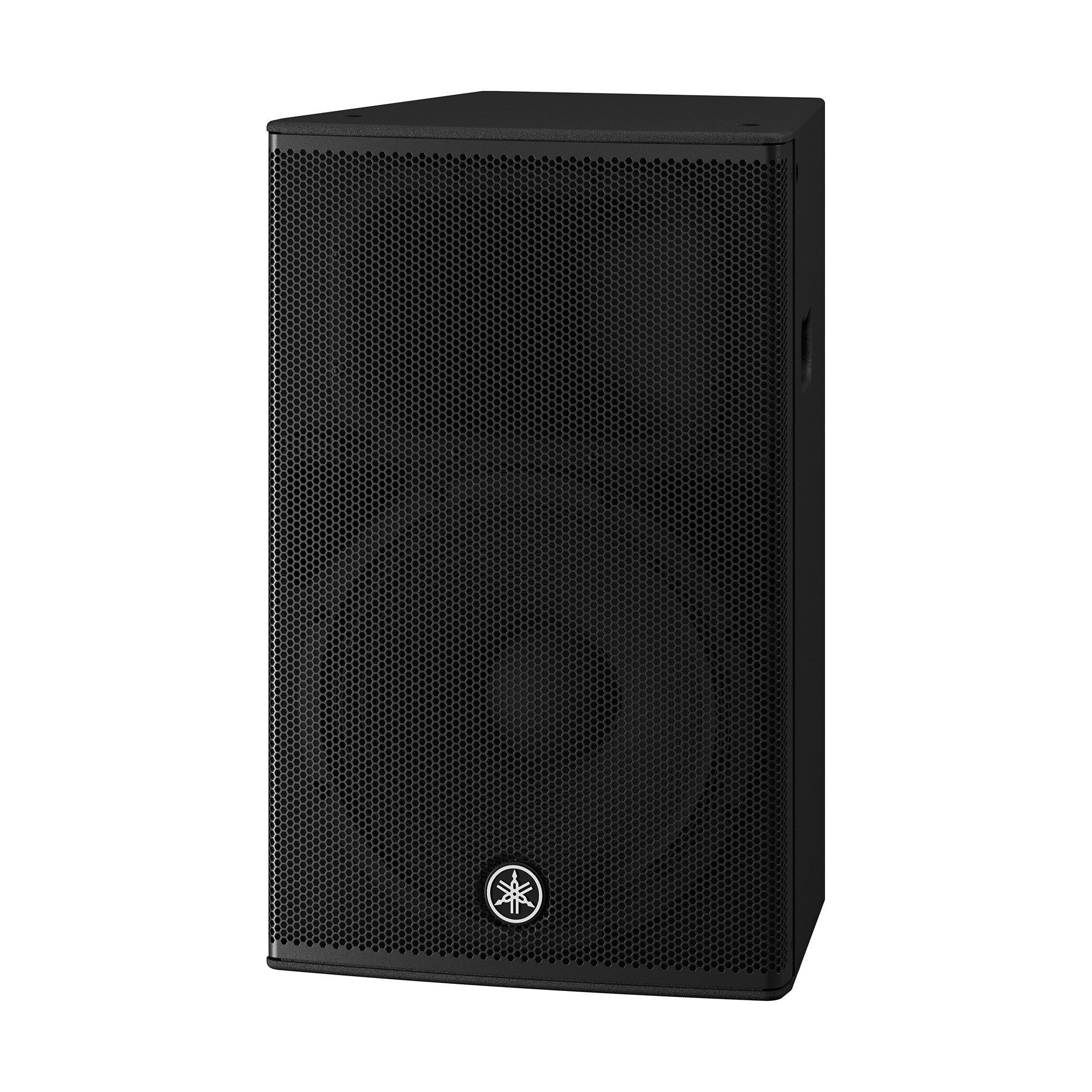

Yamaha CHR15 Passive Speaker
Yamaha CHR15 Passive Speaker
Yamaha CHR15 Passive Speaker

Yamaha CHR15 Passive Speaker

Yamaha

  • Save $229
Tax included.

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Features

Speaker Type: 2-Way Speaker, Bass-reflex Type
Frequency range (-10db): 49 Hz – 20 kHz
Nominal Coverage H: 90° x V: 60° (Rotatable)
Components LF:Diameter: 15″ cone, Voice Coil: 2.5″, Magnet: Ferrite
Components HF: Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite
Crossover: 2.0 kHz
Power rating: NOISE: 250W, PGM: 500W, PEAK: 1,000W
Nominal Impedance: 8Ω
SPL: Sensitivity (1W; 1m on axis): 95dB SPL. Peak (Calculated) 125 dB SPL
I/O connectors: speakON NL4MP x 2 (Parallel)
Cabinet Material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side x 1
Pole Socket: ø35mm x 1 (Bottom)
Dimensions: W: 432mm H: 692mm D: 405mm
Weight: 22kg
